Kawasaki Bayou 400 4X4
| Specification | Bayou 400 4X4 |
| Engine Type | Liquid-Cooled, 4-Stroke Single with Balancer |
| Displacement | 391cc |
| Bore x Stroke | 81 x 76mm |
| Valve System | SOHC, 4 Valves |
| Carburetion | Keihin CVK32 |
| Ignition | DC-CDI |
| Starting | Electric/Optional Kickstart Backup |
| Clutch | Automatic Centrifugal and Automatic Wet Multi-Disc |
| Transmission | 5-Speed plus Reverse |
| Final Drive | 4WD, Shaft |
| Frame Type | Double Cradle, Steel |
| Suspension, Front | Double Wishbone 5-Way Preload Adjustable Shocks |
| Suspension, Rear | Quad-Link with two 5-Way Preload Adjustable Shocks |
| Wheel Travel, Front/Rear | 5.1/5.1 inches |
| Tires, Front/Rear | AT 24 x 8-11 Tubeless/AT 24 x 10-11 Tubeless |
| Brakes, Front/Rear | Dual Hydraulic Discs/Sealed Drums |
| Seat Height | 31.3 Inches |
| Fuel Capacity | 3.2 Gallons |
| Fuel Gauge | Standard |
| Dry Weight | 595 Pounds |
| Colors | Hunter Green |

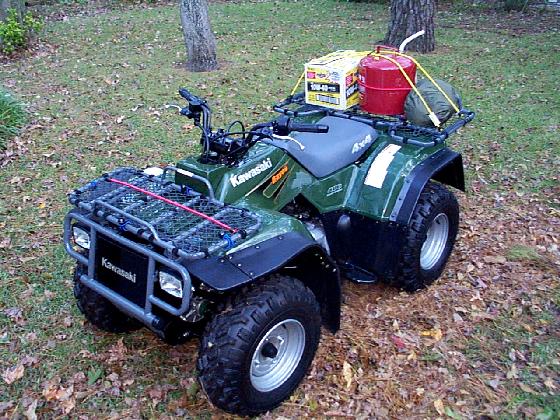

Kawasaki Bayou 400 4X4 (front view)

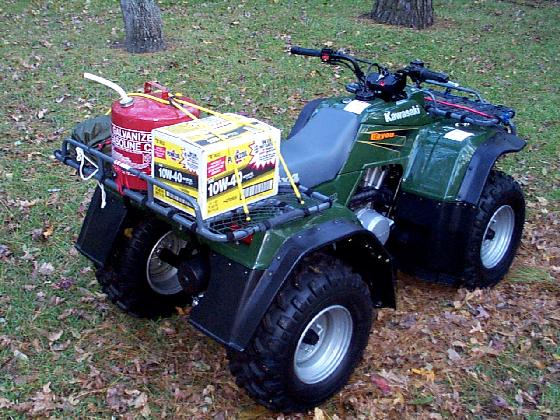

Kawasaki Bayou 400 4X4 (rear view)
